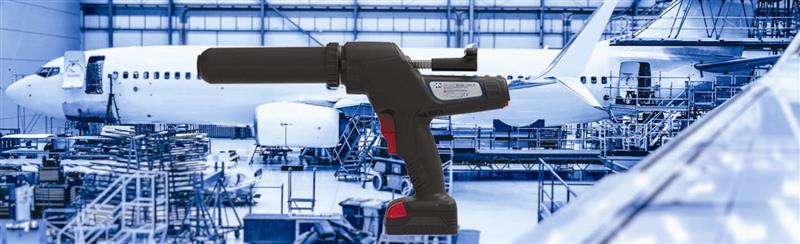

SEMCO® Model 1250-A Battery Powered Dispensing Tool


PPG SEMCO® Model 1250-A is a battery powered dispensing tool intended for the application of sealants, adhesives, potting compounds, and other materials packaged in Semco cartridges or SEMKIT® Packages. The unit is designed for usage in the aerospace and electronics industries and offers the convenience of a light-weight, powered dispensing solution without the hassle of an air hose. Each unit comes with (2) 12V lithium-ion batteries, a 2.5 oz. threaded plastic retainer, a 6 oz threaded plastic retainer, a charger base and a universal charging cord. The Semco 1250-A battery powered dispensing unit is upgraded with a new variable dispensing speed trigger and adjustable retraction to minimize & adapt to drool associated with some sealants. These upgrades are a step towards the advantages associated with pneumatic dispensing.

Recommended Uses

The Semco Model 1250-A dispensing tool is optimized for by-pass free dispensing when using materials packaged in Semco cartridges with a wiper plunger (WP) or P-plungers installed. Aerospace sealants and adhesives supplied in packages other than Semkits can be evaluated by the Semco engineering team to advise on the best possible solution for by-pass free dispensing.

Accessories

PPG's aerospace business provides precision molded Semco brand cartridges, plungers, nozzles, sem-luer adapters, and sem-needles. When these accessories are used in conjunction with the Semco Model 1250-A dispensing tool, the exact amount of material can be dispensed at the precise location required.

Features

  • Light weight (less than 3.5 lb.)
  • By-pass free operation for Semkit packaging using PPG Semco patented expandable piston
  • Ergonomically designed - optimizes the weight balance in operators’ hands
  • Improved portability, no air hose required
  • 30 minutes to completely charge 12V lithium-ion battery
  • Fully charged battery can dispense between 35 and 40 six-ounce Semco cartridges
  • Variable retraction control (1-9) on rear of dispenser
  • 2.2 (kN) stall force
